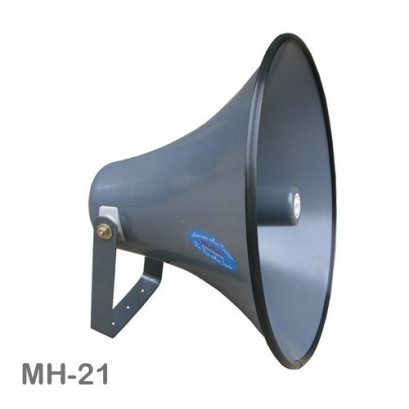

High-impedance (70V/100V lines). Stainless steel brackets and hardware. Shock resistant aluminium oval horn. Unobtrusive off-white colour. Compliance with IP-65.
100 V line or 70 V line
100 V line: 330 Ω (30 W), 670 Ω (15 W), 1 k Ω (10 W), 2 k Ω (5 W) 70 V line: 170 Ω(30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1 k Ω (5 W), 2 k Ω (2.5 W)
Sound Pressure Level
113dB, 1W / 1m at 500 to 2,500 Hz peak level).
250 ~ 10,000Hz
Sensitivity when used as Microphone
(0 dB = 1 mW/10 dynes/cm 2) -20 dB at 1 kHz
Hot; Black wire, com; White wire.
-20 ~ +55°C (must be free from dew condensation).
Horn flare: Aluminum, off-white, powder coating / Reflector horn and rear cover: ABS resin, off-white / Bracket, Screws and bolts: Stainless steel / Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length)
285 (W) x 227 (H) x 277 (D) mm
Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
